KONSAN TUBULAR FABRIC SPREADER
|
With Fabric Control Panel |
TUBSP-E |
Additional Encoder System |
|
TUBSP-R |
With Rolled Fabric Device |
|
TUBSP-RL |
Fabric Control Panel +Rolled Fabric Device |
TECHNICAL DATA
|
|
TUBSP-L |
TUBSP-R |
TUBSP-RL |
|
Max. Fabric Width |
122 cm |
||
|
Max. Fabric Roll Diameter |
... |
30 cm |
|
|
Max. Fabric Weight |
50 Kg |
||
|
Max. Spreading Height |
21 cm |
||
|
Max. Spreading Speed |
80 m/min |
||
|

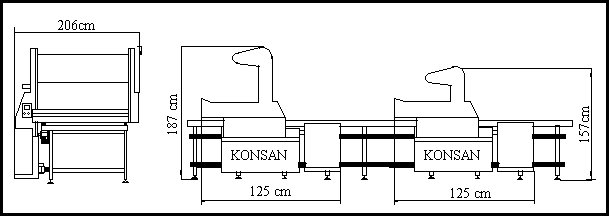

Machine Width |
125 cm |
||
|
Machine Length |
206 cm |
||
|
Machine Height |
187 cm |
||
|
Machine Weight |
280 Kg |
250 Kg |
280 Kg |
ELECTRICAL DATA
|
|
220V AC. |
Magnetic Stopper |
|
SP...E |
Encoder System |
